High rigid offset stylus arm (angular)/Contour ML=58,MLE=5, B=8, W1=12°

High rigid offset stylus arm (angular)/Contour ML=58,MLE=5, B=8, W1=12° product photo

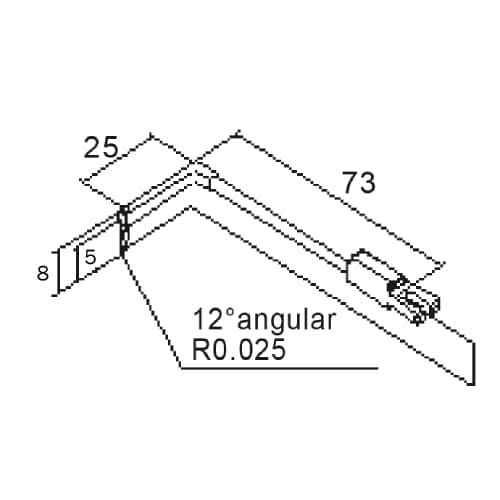

High rigid offset stylus arm (angular)/Contour ML=58,MLE=5, B=8, W1=12° product photo Back View L

High rigid offset stylus arm (angular)/Contour ML=58,MLE=5, B=8, W1=12° product photo

High rigid offset stylus arm (angular)/Contour ML=58,MLE=5, B=8, W1=12° product photo Back View S

High rigid offset stylus arm (angular)/Contour ML=58,MLE=5, B=8, W1=12°

625006-9256-000

Application
Details

Application

Ordinary offset (one-sided cut)

Details

Application: Tactile
Product Type: Contour Stylus
Length (L): 73,0 mm
Measurement Length (ML): 58,0 mm
2nd Measurement Length (MLE): 5,0 mm
Length 1 (L1): 25,0 mm
Ø Shaft (DS): 3,0 mm
Width (B): 8,0 mm
Angle 1 (W1): 12,0 °

ACCT-no. DM83529
