Application
T-shaped styli Application: Grooves

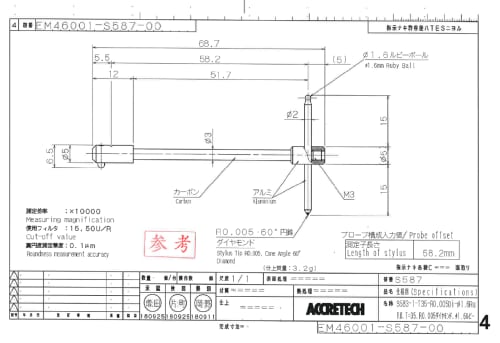

- ACCT-no. EM46001-S587
- Tip/Side 1: Ø1.6 mm, ruby
- Tip/Side 2: 5µm R, 60° cone, diamond
Details
- Application
- Tactile
- Product Type
- Form Stylus
- Stylus Type
- T-Stylus
- Connection Type
- RONDCOM all position detector
- Ø Sphere (DK)
- 1.6 mm
- Length (L)
- 68.7 mm
- Measurement Length (ML)
- 58.2 mm
- 2nd Measurement Length (MLE)
- 15.0 mm
- Ø Shaft (DS)
- 3.0 mm
- 2nd Ø Shaft (DSE)
- 2.0 mm
- Ø Body (DG)
- 5.0 mm
- Width (B)
- 35.0 mm
- Angle 1 (W1)
- 60.0 °
ACCT-no. EM46001-S587
