Stylus Systems

Stylus systems are the basis for accurate measurements. We offer a variety of components for building your individual stylus system.
Ø Sphere (DK)
Length (L)
Meas. Len.

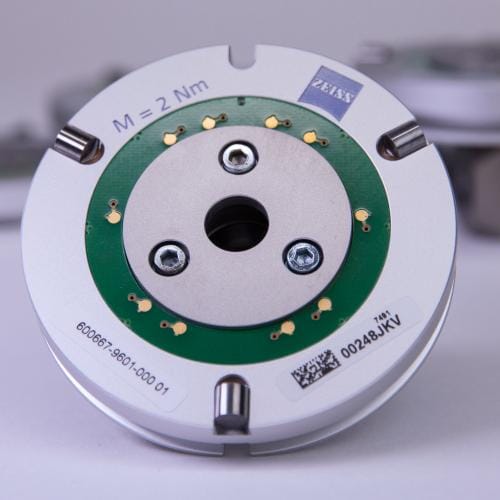

Adapter plate bundle
626119-0001-100
₨ 256,320.00GST Extra as appliacable
Star element
626103-6110-001
Length (L)
6.5 mm
1. Angle (°)
90.0 °
₨ 4,860.00GST Extra as appliacable
Knuckle joint, M5, bending
600342-9002-000
Length (L)
30.0 mm
₨ 8,680.00GST Extra as appliacable
Cube, M5
600341-8002-000
1. Angle (°)
90.0 °
₨ 5,210.00GST Extra as appliacable
Rotary piece, M5
626107-6280-020
Length (L)
5.0 mm
₨ 3,470.00GST Extra as appliacable
Star element with cone adapter, 4 x DS 1.5
626107-6280-110
Length (L)
10.0 mm
Ø Shaft (DS)
1.5 mm
₨ 10,410.00GST Extra as appliacable
Star element, 4 x M3 XXT
626103-6110-003
Length (L)
13.0 mm
₨ 6,590.00GST Extra as appliacable
Knuckle joint, rotating, M5
626105-6280-040
Length (L)
40.0 mm
₨ 16,080.00GST Extra as appliacable
Double cube, M3 XXT
626103-6110-002
Length (L)
13.0 mm
1. Angle (°)
180.0 °
₨ 5,440.00GST Extra as appliacable
Cube, M5
626115-6110-003
1. Angle (°)
90.0 °
₨ 5,210.00GST Extra as appliacable
