M2

Styli with M2 thread are especially suitable for switching probes. With the appropriate connecting element they can also be connected to other thread systems. In the M2 range, styli using ruby or silicon nitride spheres are available. The shaft is made of tungsten carbide as standard. Cylindrical styli, which are made entirely of tungsten carbide, and disk styli made of ceramic, are also available.

  • Styli Standard

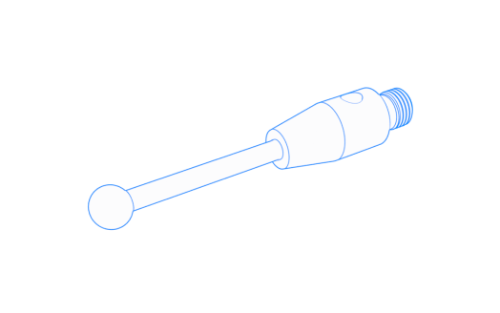

    Styli Standard
    Spherical styli with straight and stepped shafts are used for all standard applications.
  • Clamping styli
    Clamping styli
    ZEISS clamping styli - the flexible solution
  • T-styli
    T-styli
    T-stylus for the measurement of opposite undercuts.
  • Star styli
    Star styli
    Star styli enable measurements in different coordinate directions.
  • Cylinder styli

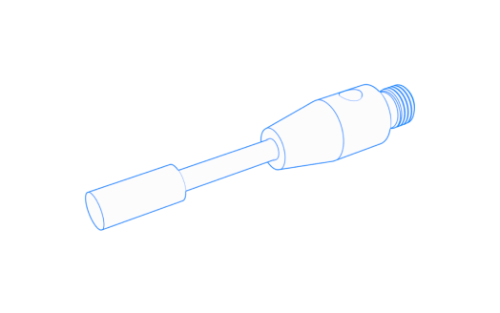

    Cylinder styli
    Cylinder styli measure two-dimensionally and are used to measure thin sheets narrow workpiece edges.
  • Disc styli

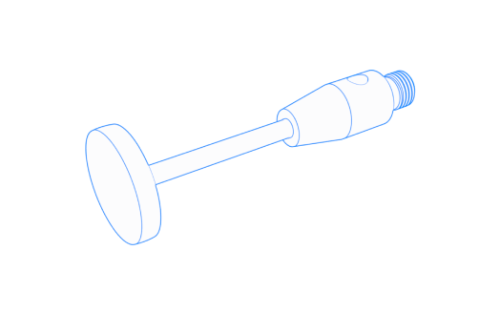

    Disc styli
    ZEISS disk stylus for measuring undercuts, cut-ins or large boreholes.
  • Spherical cylinder styli
    Spherical cylinder styli
    Spherical cylinder stylus for edge measurement and surfaces
