M5, Styli stepped, diamand coated sphere, tungsten carbide shaft
Diamond!Scan© mono Stylus stepped M5, DK2.5 L58
626115-0129-058
Application
Diamond coated styli with sphere and shaft made of one piece for the highest stability and accuracy. M5 thread for VAST active scanning sensors.
- Spherical styli have the same probing behavior in every direction
- Diamond coated sphere resistant to deposits and wear
- Polished surface for highly sensitive materials
- Tungsten carbide shaft with high rigidity
- Higher stability through stepped shaft
- Proven ZEISS quality through high-end manufacturing

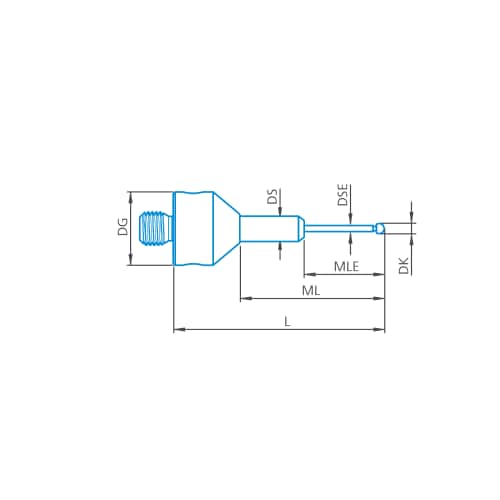

Details
- product type
- Stylus
- Connection Type
- M5
- Ø Sphere (DK)
- 2.5 mm
- Length (L)
- 58.0 mm
- Application
- Tactile
- Ø Shaft (DS)
- 4.0 mm
- Ø Body (DG)
- 11.0 mm
- Meas. Len.
- 48.0 mm
- Stylus Type
- Stepped
- Ø2 Shaft (DSE)
- 1.5 mm
- 2. Meas. Len.
- 33.0 mm
- Stylus Tip
- Sphere-Segment
- Styl. Tip Mat.
- Diamond Coated
- Shaft Mat.
- Tung. Carb.
- Weight
- 8.68 g
- Software
- Software
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
